Description

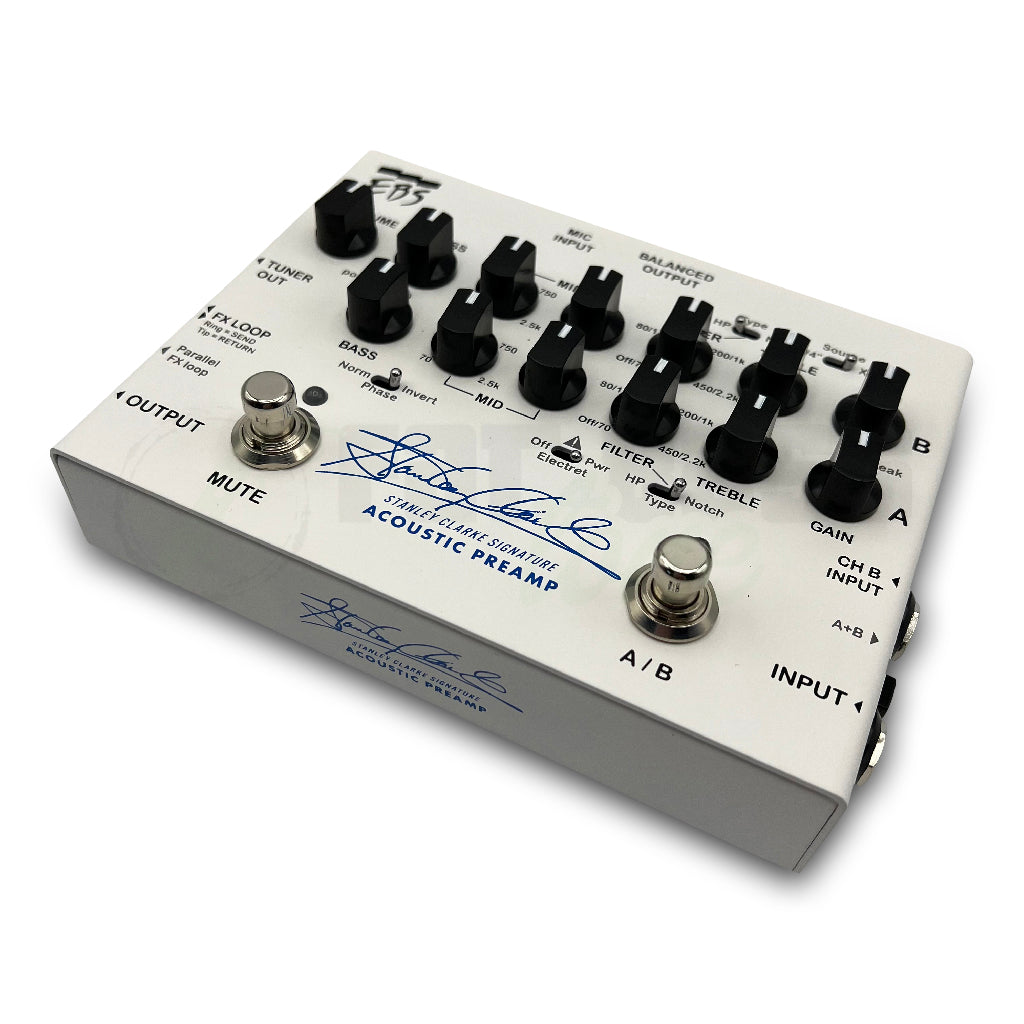

acoustic bass pedal EBS Stanley Clarke Signature Acoustic Bass PreampWORKS WITH ACTIVE, PASSIVE, & PIEZO PICKUPS ANALOG DUAL CHANNEL POWER SUPPLY INCLUDED FREE SHIPPING IN THE USA EXPERT TECHNICAL SUPPORT IN STOCK MEANS IN STOCK DESCRIPTION The Stanley Clarke Signature Acoustic Preamp is a 2 channel preamp, built exclusively with premium components. It is engineered and designed by EBS together with the legendary bass player and composer Stanley Clarke. Since the preamp operates at a signal level equal to professional
WORKS WITH ACTIVE, PASSIVE, & PIEZO PICKUPS
ANALOG
DUAL CHANNEL
POWER SUPPLY INCLUDED
DESCRIPTION
The Stanley Clarke Signature Acoustic Preamp is a 2-channel preamp, built exclusively with premium components. It is engineered and designed by EBS together with the legendary bass player and composer Stanley Clarke.
Since the preamp operates at a signal level equal to professional mixing consoles it provides a huge amount of headroom. The superior signal quality makes it suitable to use as a preamp in combination with any power amp. The headroom and specific features make it ideal for handling the complex sonic characteristics of an upright bass.
The A and B channels both feature an input GAIN control and an EQ strip with BASS, MIDS (pick the frequency range with one knob and cut or boost in that range with another) and TREBLE. They both also have a secret weapon, a control knob that can be used either as a HIGH PASS or NOTCH filter. A switch decides the function, while the control knob picks the frequency range. The notch and high pass filters are excellent tools to prevent unwanted feedback and adjust the sound to the characteristics of the room and your instrument.
With 10 Mohms input impedance for both the A and B channels, it handles any instrument with passive, active, or high impedance piezo pickups. The A channel also provides support for Electret pickups when activating a dedicated switch. The B channel allows you to use a 48V Phantom powered (or passive) dynamic or condenser microphone as the source via an XLR-input. Choose whether to use the XLR or 1/4"-input for the B channel with a switch. The preamp lets you jump between the A and B channels to allow for different settings when you play with a bow or pizzicato or mix the two if you use two different input sources.
Hook up additional effects in serial or parallel through the EFFECTS LOOP (requires a Y-split insert cable). A TUNER OUT lets you plug in an external tuner. A BALANCED XLR-OUTPUT sends a studio-quality line signal to the front-of-house or a recording device. Use it in conjunction with a Speaker Simulator and use the Ground Lift to prevent hum. The Aux Input and professional-grade Headphones output makes practicing and learning new songs easy.
Can this pedal be used with other instruments?
Yes, of course. The frequency range of an upright bass is wide and complex, which means most other instruments - acoustic or electric - fits within the range that this pedal covers. Other acoustic instruments benefit from the same specific features that this pedal is equipped with to handle the upright bass. Electric bass players may find the two similar channels an excellent way to make individual EQ settings for two different instruments and make it possible to switch between the two smoothly at a gig.
**Sorry international bassists, but US Dealers are not authorized to ship EBS pedals outside of the US. Please contact us if you are having trouble finding EBS products in your home country.
FEATURES
- 2-channel preamp (A/B or A+B)
- Operates with Studio-grade signal quality
- 10 Mohm Impedance inputs (both channels)
- Individual High Pass/Notch Filter for each channel
- XLR microphone-input with 48V Phantom Power (channel B)
- Electret pickup support (channel A)
- Tuner output
- Effects Loop (serial/parallel)
- Balanced Output (with Speaker Simulator and Ground Lift)
- Aux Input and professional-grade headphones output.
TECH & SPECS
Dimensions:
6.6" [168mm] Wide
4.9" [124mm] Deep
2.1" [53mm] High
Weight: 1.5 lbs. [660g]
Channel Specifications:
Input Impedance: 10 Mohms // 22 pF
Gain: Gain Range -oo/+30 dB Gain Peak LED (ch A = RED, B = yellow) +10 dBv Frequency Response +0/-3 dB 20-20.000 Hz
Bass Filter: Type Shelving Gain Range +/- 15 dB @ 40 Hz
Mid Filter: Type Bandpass Filter Gain Range +/- 13 dB Frequency Range 70 - 2500 Hz Q 0.8
Treble Filter: Type Shelving Gain Range +/- 15 dB @ 10 kHz
HP Filter: Type 12 dB/octave High Pass Frequency Range 20(off) - 450 Hz
Notch Filter: Type Bandpass Notch Frequency Range 70 - 2200 Hz Q 7 Attenuation 7 dB (typically)
Electret Power (Channel A): 5V, 2mA
Features:
Effects Loop:
- Loop Signal Level -10 dBv (nominal)
- Gain Unity (1:1)
- Output Impedance 2 kohms
- Input Impedance 100 kohms
- Modes Serial or Parallel
Phones Out: Recommended Imp. 32 - 200 ohms>
Aux Input:
- Input Impedance 20 kohms
- Nominal Level -10 dBv
Output:
- Output Impedance 1 kohms
- Signal Level 0 dBv (nominal)
Balanced Output: Output Level -20dBv (nominal) XLR Connections 1-GND, 2-Hot, 3-Cold Options Gnd Lift, SPKR Sim
Balanced Input (Channel B): Input Level -30dBv (nominal) XLR Connections 1-GND, 2-Hot, 3-Cold 48V Phantom Yes
Auxiliary Info: Power Requirements Idle 500mA @9V max 800mA @9V (with headphones at max output level)
